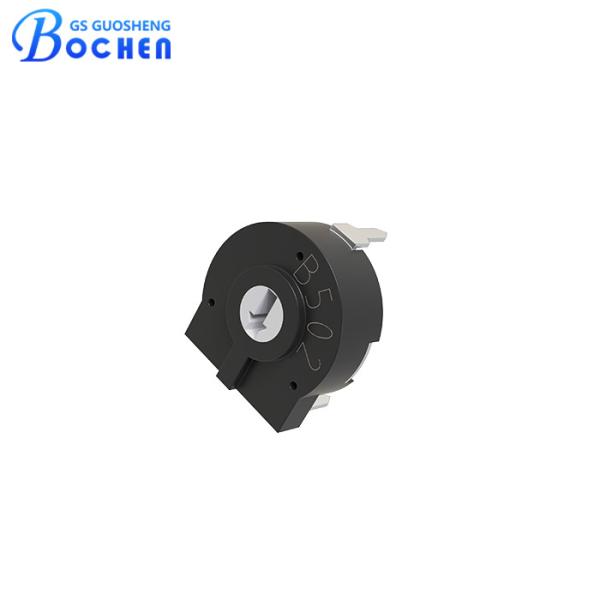

BOCHEN PT10 Single Turn Vertical Adjustment Carbon Trimmer Potentiometer

Name: BOCHEN PT10 Single Turn Vertical Adjustment Carbon Trimmer Potentiometer
Brand: BOCHEN
Price: 0.075 USD

China BOCHEN PT10 Single Turn Vertical Adjustment Carbon Trimmer Potentiometer factory

Brand Name : BOCHEN

Model Number : PT10

Certification : RoHS, Reach

Place of Origin : Chengdu

MOQ : 100 Pieces

Price : $0.075 - $0.80/piece

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 3,000,000 Pieces Per Month

Delivery Time : 1-7 Workdays

Packaging Details : 500 pieces/plastic bag; 2000 pieces/small carton; 10000 pieces/master carton.

Product Name : PT10 Carbon Film Potentiometer

Product Type : Single turn trimmer

Element Type : Carbon

Adjustment : Top Adjust

Termination Style : Through Hole

Resistance Range : 100Ω-5MΩ

Resistance Tolerance : 20%

Nominal power 50°C (122°F) : 50°C, 0.15 W

Electrical rotation angle : 220° ± 20°

Mechanical rotation angle : 235° ± 5°

Contact Now

BOCHEN PT10 Single Turn Vertical Adjustment Carbon Trimmer Potentiometer

Description

The PT10 Carbon Trimmer Potentiometer is designed for stable, precise resistance adjustments in a wide range of electronic applications. With a compact 10mm diameter and a carbon resistive element, it ensures consistent performance and long-lasting reliability, making it ideal for professional electronics designs where fine tuning is essential.

Features

Single-turn carbon trimmer potentiometer
Compact 10mm diameter
Top adjustment with hexagonal slot
Vertical adjustment / horizontal mounting
Straight PCB terminals, through-hole type
Wide resistance range: 100Ω to 5MΩ
Operating temperature: -25°C to +70°C
Power rating: 0.15W at 50°C
Long life: up to 100,000 cycles
Ideal for volume, frequency, speed, and temperature control

Specification

Electrical Specifications	Taper	Lin
	Standard Resistance Range	100Ω~5MΩ
	Standard Resistance Tolerance	± 20%
	Max. Voltage	200 VDC
	Nominal power 50°C (122°F)	50°C, 0.15 W
	Residual resistance	≤ 0.5% Rn (5Ω min.)
	Equivalent noise resistance	≤ 3% Rn (3Ω min.)
	Operating temperature	-25°C to +70°C
Mechanical Specifications	Mechanical rotation angle	235° ± 5°
	Electrical rotation angle	220° ± 20°
	Rotational Torque	0.4 to 2 Ncm (0.6 to 2.7 in-oz)
	Stop Torque	> 5 Ncm (>7 in-oz)
	Push-pull force over the rotor	> 49N
	Life	Up to 100k cycles
Environmental Testing	Electrical life	1.000h at 50°C; 0.15W; ±5%
	Mechanical life	1000 cycles at 10 to 15 cpm; ±3 % (Rn < 1M )
	Temperature coefficient	–25°C; +70°C; ±300 ppm/°C (Rn < 100K)
	Thermal cycling	16h at 85°C and 2h at -25°C; ±2.5%
	Damp heat	500h at 40°C and 95% relative; ±5%
	Vibration	2h each plane at 10Hz - 55Hz; ±2%
	Storage	6 month at 23°C ±2°C and 50% RH; ±2.5%

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified. BOCHEN PT10 Single Turn Vertical Adjustment Carbon Trimmer Potentiometer

Applications

Home appliance program selectors
Thermostat adjustment modules
Timer and control relay systems
Power tools and handheld device control
Test and measurement instrumentation
General-purpose electronics
