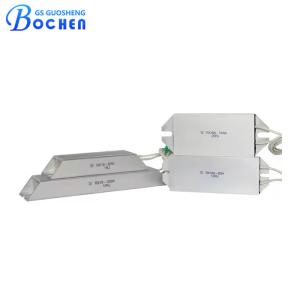

RX18 150W 47K Aluminum Enclosed Wirewound Power Resistor
Description
The RX18 Aluminum Housed Power Resistor is a robust and versatile component designed for high-power applications where reliability and precision are critical. Encased in a durable aluminum housing, this resistor offers excellent heat dissipation properties, ensuring stable performance even under demanding conditions.
Featuring a wirewound construction, the RX18 resistor provides superior accuracy and low inductance, making it suitable for a wide range of industrial and electronic applications. It is capable of handling high current loads while maintaining tight tolerance levels, thus ensuring consistent operation in various circuit configurations. Ideal for use in power supplies, motor control systems, braking systems, and other power electronics applications, the RX18 resistor is engineered to deliver dependable performance and long-term durability. Its compact design and efficient thermal management capabilities make it a preferred choice among engineers and designers seeking reliable resistance solutions for their projects.
With its high power rating and stable characteristics, the RX18 Aluminum Housed Power Wirewound Resistor meets the stringent requirements of modern electronic designs, providing effective solutions for controlling current and managing voltage in diverse applications.
Specification
| Rated Power | 150W |
| Nominal Resistance Range | 0.2Ω~2KΩ |
| Resistance Tolerance | 5% |
| Temperature Coefficient | ±200PPM/°C |
| Short Term Overload | 60W: 5 * Rated Power for 5 seconds
>60W: 10 * Rated Power for 5 seconds |
| Limiting Element Voltage | 600VAC / 850VDC |
| Dielectric Strength | 2500VAC 1 Minute |
| Insulation Resistance | 100MΩ |
| Temperature Range | -25°C~250°C |
| Max. Surface Temp at Rated Power | 250°C~350°C |
Dimension
Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.
Packaging
Packaging specification: 1. 38*30*15CM/6 Pieces/Carton/16KG(1000W)
2. 62*36.8*14CM/5 Pieces/Carton/22KG(3000W)
Application
The RX18 Aluminum Housed Power Wirewound Resistor finds application in various specific equipment and facilities, including:
1. Power Supplies: Ensures stable current and voltage in power supply units, enhancing system reliability.
2. Motor Control Systems: Limits current and protects circuit components in motor drive and control circuits.
3. Braking Systems: Used in braking resistors for energy recovery and control of braking circuits.
4. Generators: Stabilizes current and voltage outputs in generator circuits.
5. Industrial Automation Equipment: Regulates resistance and power distribution in various industrial automation control systems.
6. Electronic Devices: Manages and controls current in diverse high-power electronic devices and circuit boards.
In summary, the RX18 Aluminum Housed Power Wirewound Resistor plays a crucial role in electronic and electrical equipment requiring high power, stability, and reliability. It is extensively utilized in industrial, electronic, communication, and automotive sectors.
Advantage
• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, Reach, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
